Product Details
＋

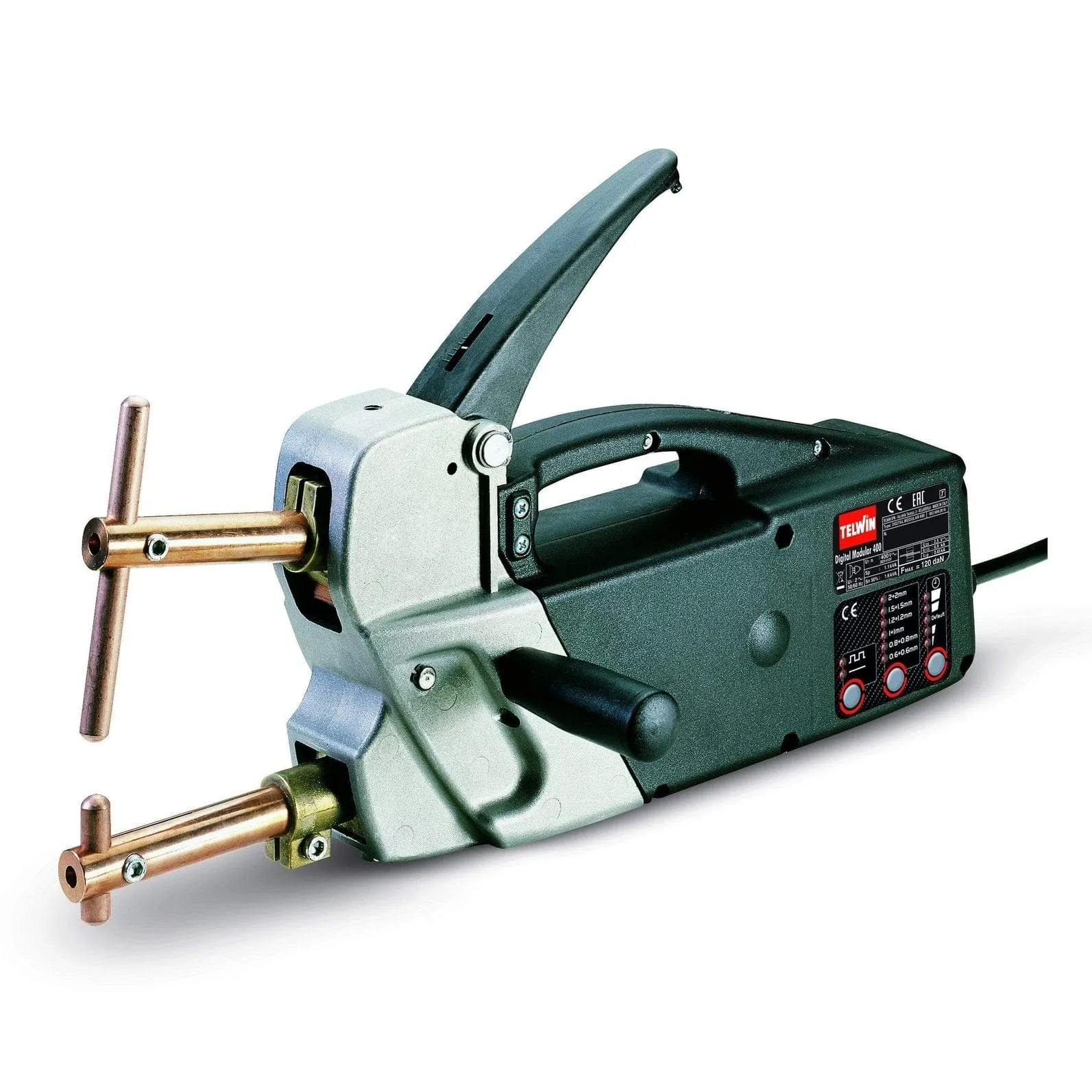

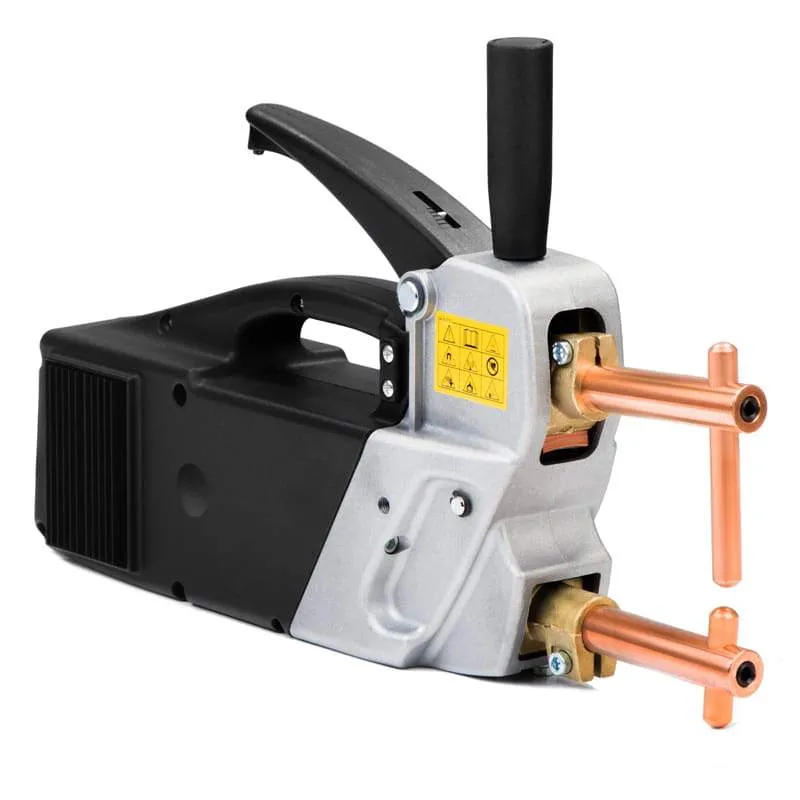

Microprocessor controlled spot welding machine. It implements a new Fuzzy logic control system that simplifies its use and increases the spot welding quality.
Suitable for spot welding of sheets with maximum thickness of 2 2mm.
Features:
– automatic regulation of the spot welding current and time according to the material thickness
– a choice between continuous and pulse operation (suitable for sheets with high yield points – high stress)
– arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
– handgrip made out of thermic isolating material
– thermal protection.
SPECIFICATIONS
- POWER FACTOR (cosphi) 0,9
- SINGLE PHASE MAINS VOLTAGE 230 V
- MAX WELD.THICK. ON 2 SHEETS 2 2 mm
- MAINS FREQUENCY 50 / 60 Hz
- DUTY CYCLE 1,5 %
- MAX SPOT-WELDING CURRENT 6900 A
- PROTECTION DEGREE IP20
- MAX NO LOAD VOLTAGE 2,5 V
- DIMENSIONS 44 x 10 x 18,5 cm
- MAX ABSORBED POWER 13 kW
- RATED POWER X=50% 2,3 kW
- MAINS FUSE 25 A
